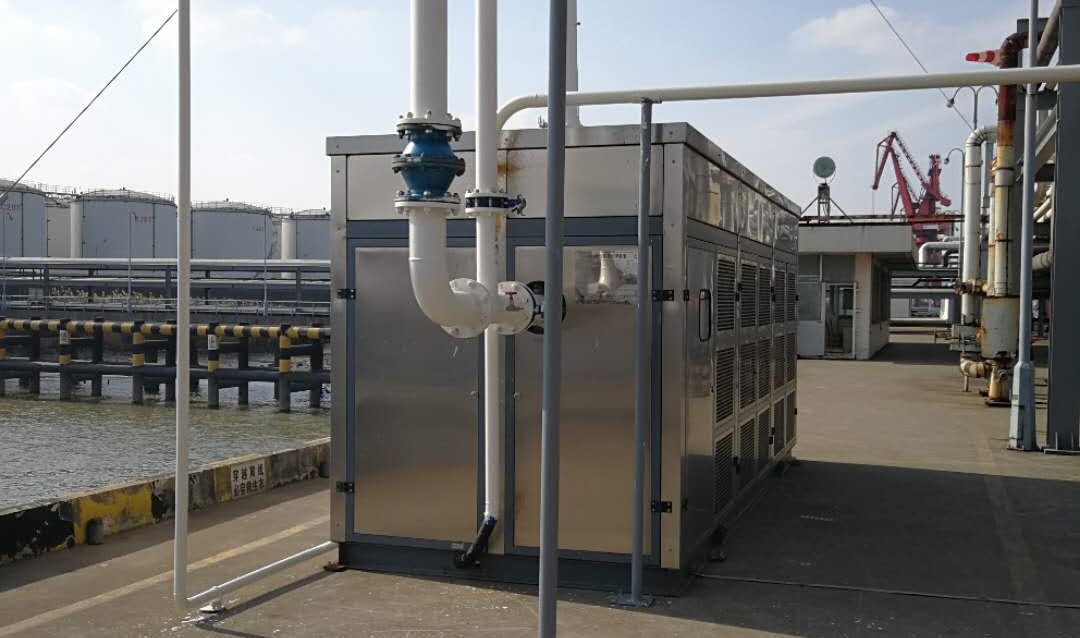

Oil and gas recovery device


With the deterioration of the global environment and the enhancement of environmental awareness, China has successively introduced a series of environmental protection policies, mandatory provisions must set up oil and gas recovery systems to recover and utilize volatile oil and gas from storage and transportation facilities such as storage tanks and loading and unloading trucks and ships to prevent air pollution.

Keyword:

LED

Category:

Gas Condensation Recovery Device

Vocs Exhaust Gas Condensation Device

Immediately consult

Oil and gas recovery device

  • DESCRIPTION
  • Main features
  • Model
  • Application
  • Product description

    Necessity of oil and gas recovery device:

    With the deterioration of the global environment and the enhancement of environmental awareness, China has successively introduced a series of environmental protection policies, mandatory provisions must set up oil and gas recovery systems to recover and utilize volatile oil and gas from storage and transportation facilities such as storage tanks and loading and unloading trucks and ships to prevent air pollution.





    Customized as required

    In order to ensure the accuracy of the scheme and quotation, the customer provides data exhaust gas generation process, exhaust gas composition, exhaust gas concentration, exhaust gas air volume, required treatment effect (such as national standards), floor space, etc.

    Combination principle of chemical waste gas recovery device (condensation + adsorption process)

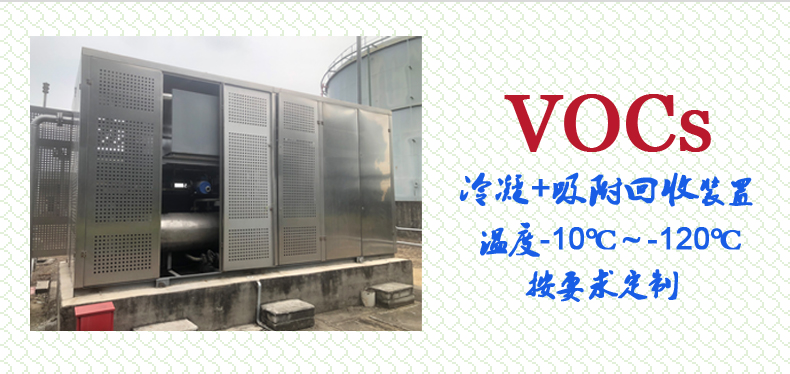

    The volatile VOCS gas is introduced into the equipment cold box (the device sets the condensation temperature -10 °C ~ -120 °C), other temperature zones can be customized, and the condensation can be carried out step by step as needed. Part of the continuous production process has a two-way switching process in the low temperature section (after one side is blocked, it automatically switches to the other heat exchange cold box for condensation, and the ice block side is defrosted)



    Relevant standards

    GB3095-2012 ambient air quality standard

    GB16297-1996 comprehensive emission standard for air pollutants

    GB14553-1993 Odorous pollutant emission standards related local standards and industry standards



    Advantages of condensation







    The treatment effect is stable and saves investment.

    The unit occupies a small area and is not affected by the environmental terrain.

    There is no need to replace activated carbon, and there is no need to dispose of micro-waste costs.

    Compared with the incineration treatment process such as RCO and RTO, the condensation method has no safety distance, and the whole machine is explosion-proof.

    Chemical and pharmaceutical waste gas can be condensed and recovered, and the recovery benefits are considerable, and there are high recovery economic benefits.

    Especially suitable for high concentration, difficult to handle. Exhaust gases such as RCO/RTO direct combustion cannot be used.













  •



    1. The low-load adsorption efficiency and stable properties of activated carbon ensure the long-term stable operation of the equipment and high recovery rate.

    2. The desorption effect of the vacuum pump is strong to ensure the recycling efficiency of the equipment.

    3. Use PLC control and frequency conversion adjustment technology to realize the automatic control of the whole process of oil and gas collection, condensation liquefaction, oil-water separation and condensate transportation into storage. The refrigeration unit is regulated under variable working conditions and the system is operated economically.

    4. The process is simple, the safety is high, and the overall operation process is in a low-pressure and low-temperature state with minimal fire hazard; The level of automation control is high, easy to control and operate. The combination of condensation + adsorption process adopts the advantages of the two methods, which takes advantage of the strengths and avoids the weaknesses, and is scientifically matched.

    5. According to the different gas composition, the cooling temperature of the condensing system is as low as -60 °C, and there is no need for cryogenic to truly achieve the goal of energy saving and emission reduction.

  • Application range of condensation adsorption method

    1. Condensation recovery of ether organic waste gas: ether, propyl ether, petroleum ether.

    2. Condensation recovery of ketone organic waste gas: acetone, butanone, cycloethylketone, heptanone.

    3, alkane, methyl bromide, chlorobutane, pentane. Heptane, hexane, white electric oil.

    4. Condensation recovery of alcohol organic waste gas: methanol, ethanol, butanol, isoacetone, amyl alcohol.

    5. Condensation recovery of olefinic organic waste gas: dichloroethylene, trichloroethylene, tetrachloroethylene.

    6. Condensation recovery of stupid organic waste gas: stupid, toluene, xylene, styrene, naphtha.

    7. Condensation recovery of ester organic waste gas: methyl acetate, ethyl acetate, butyl acetate, banana water, ethyl propionate, ethyl butyrate, diethyl carbonate.

    8. Alkane organic waste gas condensation recovery: n-ethane, methylpentane, n-heptane, n-octane, cyclopentane, cyclohexane, cyclohexene, turpentine, dichloromethane, dichloroethane, trichloropropane, trichloroethane, carbon tetrachloride, bromopropyl

    9. Others: DMF organic waste gas condensation recovery, aldehydes, acetonitrile, propionitrile, valeronitrile, solvent oil, gasoline.
