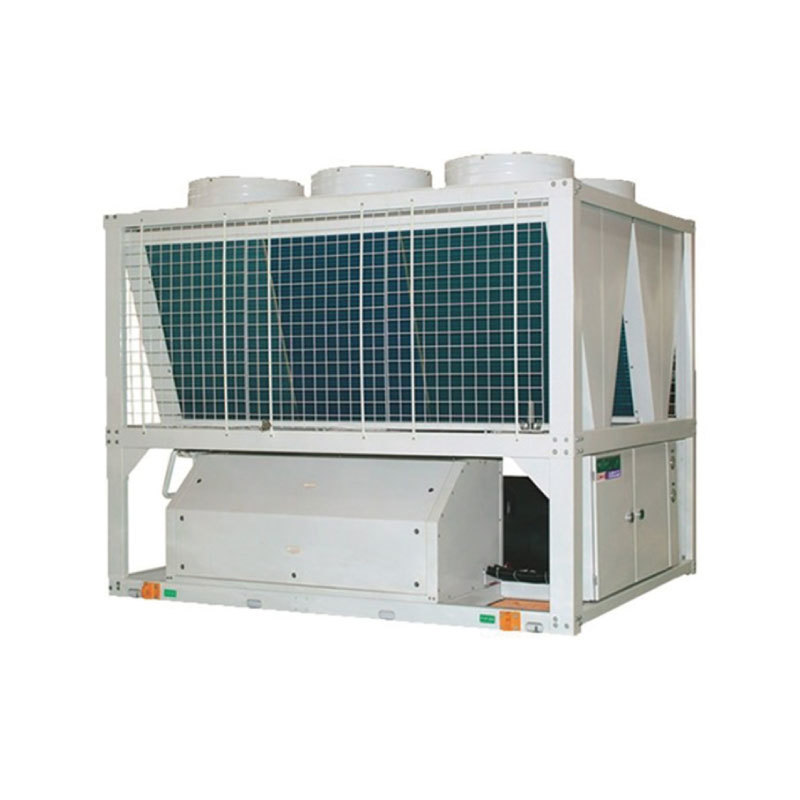

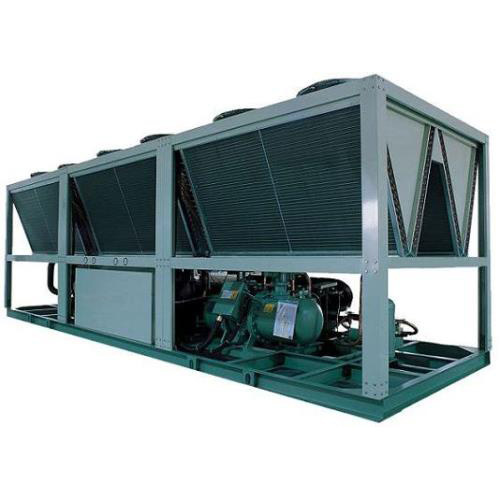

Air-cooled screw chiller


The air-cooled screw chiller (single/double series) adopts internationally renowned brand (Hanbell., Hanbell., Germany) screw compressor, supporting high-efficiency finned condenser, dry shell and tube evaporator and (Danfoss, ALCO, Merson and other international well-known brand parts

Keyword:

LED

Category:

Air-Cooled Screw Chiller

Immediately consult

Air-cooled screw chiller

  • DESCRIPTION
  • Main features
  • Model
  • Application
  • Air-cooled screw chillers:

    The air-cooled screw chiller (single/double series) adopts internationally renowned brand (Hanbell., Hanbell., Germany) screw compressor, supporting high-efficiency finned condenser, dry shell and tube evaporator and (Danfoss, ALCO, Merson and other international well-known brand parts; Equipped with German Siemens PLC control system + LCD touch screen display, the unit has the advantages of compact structure, small size, low noise, stable performance, safety, energy saving and high efficiency, and easy operation; A number of system safety protection devices can provide 4°C to 10°C chilled water, which can achieve the requirements of continuous 24-hour operation of process cooling.

    Concentrate:

    1. The refrigeration capacity is measured under the following temperature conditions: the inlet/outlet temperature of chilled water is 12°C/7°C.0°C/-5°C.-5°C/-10°C.

    2. Working range: outdoor dry bulb temperature is 33 °C, wet bulb temperature is 28 °C.

    3. This series of units can have heat recovery: hot water temperature 35 °C ~ 50 °C

    4. The above specifications are subject to change without notice, which helps our company to bring the latest scientific and technological achievements to customers at any time.

  • Features of air-cooled screw chiller:

    1. Air-cooled screw mechanism cooling capacity range: 102500Kcal/h to 654800Kcal/h optional

    2. In addition to the general characteristics of the water-cooled screw unit series in terms of assembly performance, the biggest advantage of the air-cooled chiller is that it does not require a water cooling system, as long as it is well ventilated, it can be used conveniently.

    3. The air-cooled chiller does not need to be equipped with auxiliary equipment such as cooling water pump and cooling tower, which can save a lot of materials and engineering installation costs, and even does not need to set up a machine room.

    Compressor features:

    1. International famous brand asymmetric toothed high-efficiency compressor, 25%-35% higher energy efficiency than ordinary compressor, American and European patented technology

    2. The most advanced profile line of efficient 5:6 third-generation asymmetrical tooth screw

    3. Semi-closed design, only three moving parts, with the characteristics of small number of parts and low failure rate

    4. It can realize graded 4-stage (100%-75%-50%-25%), three-stage (100%-66%-33%) or stepless capacity adjustment, flexible and convenient control, energy-saving and easy maintenance.

    5. The world-famous SKF and FAG zero-clearance multiple thrust and radial bearings are selected, with precise structure and high reliability

    6. Three-stage oil separation filter, good oil filtration effect, effectively ensure the normal operation of the compressor and the efficient heat exchange of the heat exchanger

    7. Pump type built-in differential pressure oil supply lubrication system is adopted, which is energy-saving, efficient and reliable

    8. Special fluorine-resistant low iron loss motor design, equipped with reliable motor overheating protection device, effectively ensure the efficient and reliable work of the motor

    9. Equipped with liquid refrigerant injection system under low temperature and heat pump conditions, which effectively reduces the working load and exhaust temperature of key components and improves the working reliability of the compressor

    10. The patented exhaust chamber design and continuous gas transmission of the rotor ensure low vibration and low noise of the compressor

    11. Installation of exhaust check valve at the exhaust port can prevent the rotor from reversing when stopping

    12. In addition to R22 refrigerant, R134A.R404A.R407C and other environmentally friendly refrigerants can also be selected.

    13. Easy to install and use, the unit has completed the welding of refrigerant pipelines, air tightness leak detection test, nitrogen filling pressure holding test, vacuum test, fluorine full load performance test in the factory, and is a qualified product that meets the requirements of industry standards.

  • project
    unit
    Model
    RXG90AF
    RXG120AF
    RXG160AF
    RXG170AF
    RXG210AF
    RXG225AF
    RXG265AF
    RXG280AF
    RXG310AF
    RXG330AF
    RXG360BF
    RXG420BF
    RXG450BF
    RXG490BF
    RXG530BF
    Nominal cooling capacity
    7℃
    Kw
    76.5
    120.0
    155.0
    168.0
    210.0
    225.0
    265.0
    280.0
    310.0
    330.0
    360.0
    420.0
    450.0
    490.0
    530.0
    -5℃
    46.7
    73.2
    94.6
    102.5
    128.1
    137.3
    161.7
    170.8
    189.1
    201.3
    219.6
    256.2
    274.5
    298.9
    323.3
    -10℃
    28.0
    43.9
    56.7
    61.5
    76.9
    82.4
    97.0
    102.5
    113.5
    120.8
    131.8
    153.7
    164.7
    179.3
    194.0
    power supply

    3P 380V 50Hz

    form
    Kw
    Advanced semi-closed twin screw type
    Operating power
    Kw
    27.5
    38.1
    48
    53.1
    66.8
    71.2
    79.5
    85.1
    92.2
    100.6
    112.5
    130.6
    140.4
    153
    167
    Refrigerants

    R22
    Energy control
    %
    0~25%~50%~75%~100%
    evaporator
    version

    Horizontal shell and tube type high-efficiency heat exchanger
    Refrigerant flow
    m3/h
    15.5
    20.7
    26.7
    28.4
    36.1
    38.7
    45.6
    48.2
    52.5
    56.8
    62.2
    73.0
    77.5
    85.0
    91.5
    Water pipe interface
    mm
    DN65
    DN65
    DN80
    DN80
    DN100
    DN100
    DN100
    DN100
    DN100
    DN125
    DN125
    DN125
    DN125
    DN125
    DN150
    condenser
    version

    Hydrophilic aluminum foil sleeve high-efficiency internal threaded copper tube finned type
    Air
    m3/h
    34500
    46500
    59000
    63000
    80000
    86500
    100800
    10650
    116000
    125500
    136800
    159600
    171000
    186600
    201500
    Refrigerant control
    Expansion valve

    Temperature-sensing external equalizing thermostatic expansion valve
    Safety protection devices


    High and low voltage protection, freeze protection, heat protection, double protection, safety valve, overload protection, phase loss, reverse phase, undervoltage, overvoltage, water flow protection, etc
    Form factor
    Length(L)
    mm
    2450
    2750
    2950
    3200
    3200
    3200
    3200
    3200
    3600
    3850
    4400
    4600
    5600
    5850
    5900
    Wide(W)
    mm
    1350
    1400
    1400
    1500
    1800
    1800
    1800
    1800
    2000
    2000
    2200
    2200
    2200
    2200
    2200
    High(H)
    mm
    2020
    2020
    2200
    2200
    2300
    2300
    2300
    2300
    2350
    2350
    2400
    2400
    2400
    2400
    2550
    weight
    net weight
    medical history
    1850
    2000
    2200
    2200
    2600
    2750
    2880
    2960
    3100
    3300
    3550
    3850
    4400
    4600
    5100
    Running weight
    medical history
    2128
    2200
    2420
    2420
    2860
    3025
    3168
    3256
    3410
    3630
    3905
    4235
    4840
    5060
    5610
