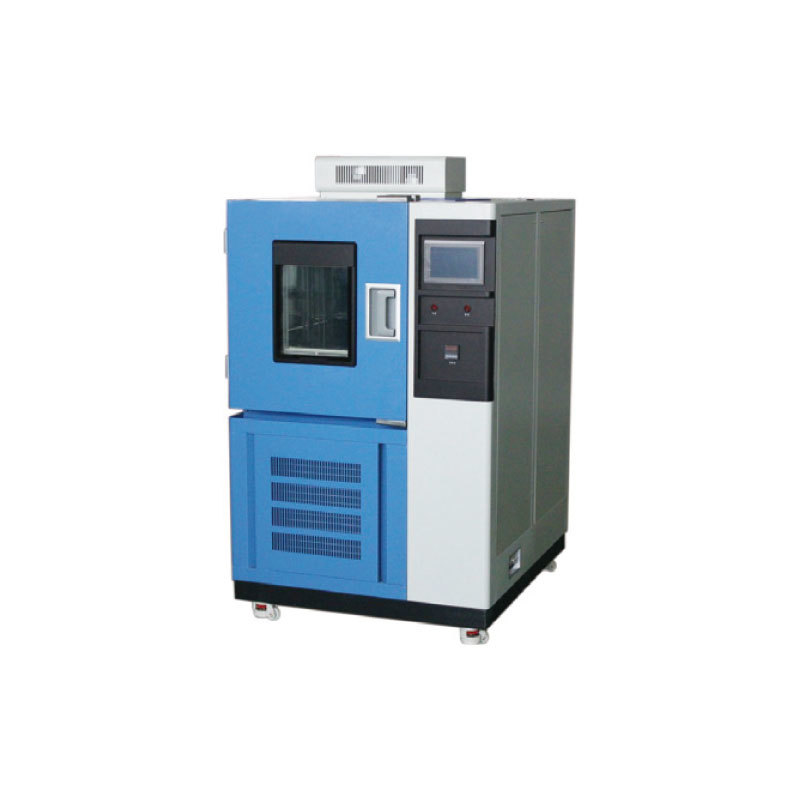

Constant temperature and humidity box


Constant temperature and humidity testing machine, also known as environmental testing machine, can accurately simulate low temperature, high temperature, high temperature and high humidity, low temperature and low humidity and other complex natural environments.

Keyword:

LED

Category:

Ice And Snow Park

Immediately consult

Constant temperature and humidity box

  • DESCRIPTION
  • Main features
  • Model
  • Application
  • Constant temperature and humidity testing machine, also known as environmental testing machine, can accurately simulate low temperature, high temperature, high temperature and high humidity, low temperature and low humidity and other complex natural environments.

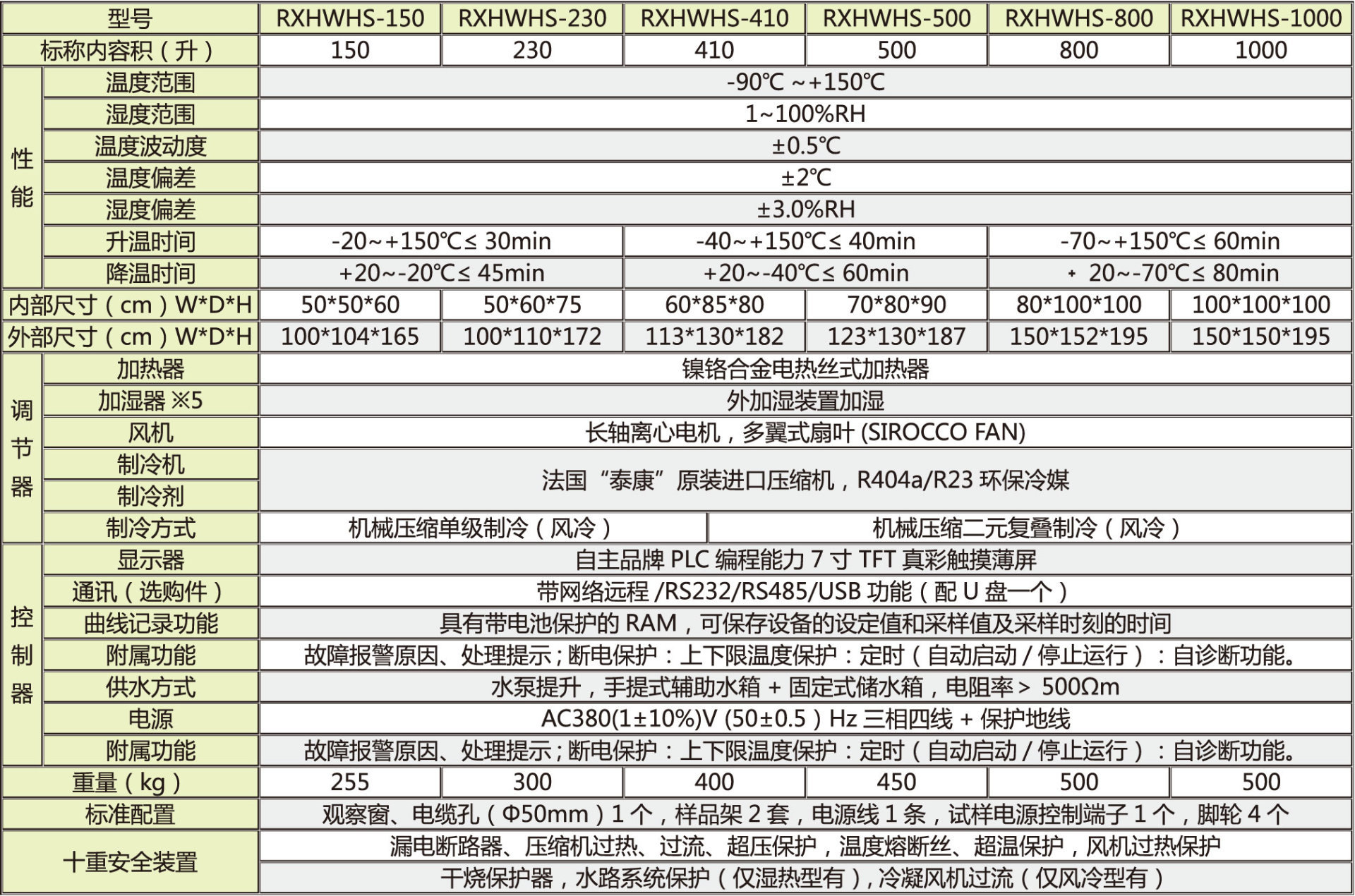

    Main parameters:

    System: balanced temperature control humidity control system

    Temperature range: -80°C--150°C

    Humidity range: 20%--98%RH

    Temperature fluctuation: ±0.5 T:

    Humidity fluctuation: ±2.5%RH

    Temperature uniformity: ±1°C

    Humidity uniformity: ±3%RH

    Inner box material: stainless steel first-class mirror light plate

    Outer carton material: stainless steel matte line treatment or cold-rolled plate paint

    Insulation material: polyurethane foam + glass wool

    Control system: using Japanese original PID controller

    Refrigeration system: French Taikang series refrigeration system

    Protection device: no dissolution switch, compression overload thermal protection, overtemperature, water shortage, phase loss protection, fault alarm system

    Concentrate:

    1 Data measured at room temperature of +25°C and circulating water temperature of +25°C without specimen.

    2 The volatility is expressed according to the GB/T5170.2------2008 rule, such as ± 5170.2 °C when expressed according to GB/T1996.0-25.

  • Features of constant temperature and humidity box:

    1. The inner tank of the product is made of first-class mirror non-embroidered steel, which is resistant to high temperature, humidity and anti-corrosion.

    2. The box body is made of non-embroidered steel hairline plate or cold-rolled plate, and there is an observation window.

    3. Digital precision instrument, automatic control, multiple security guarantees.

图片名称

Packaging and shipping

图片名称

Analyze products

图片名称

formulate a scheme

图片名称

Plan rectification

图片名称

Safety debugging

图片名称

Equipment manufacturing

图片名称

Customer determines the plan

图片名称

Understand customer needs
