Table of Temperature and Proportional Mass Concentration of Conventional Refrigerant


Keyword:

LED

Category:

Refrigerating Engineering

Immediately consult

Table of Temperature and Proportional Mass Concentration of Conventional Refrigerant

  • DESCRIPTION
  • Main features
  • Model
  • Application
  • Technical parameters of cooling tower selection


    Design Conditions:
    Inlet water temperature: 37°C
    Outlet temperature: 32°C
    Wet bulb temperature: 27°C
    Dry bulb temperature: °C

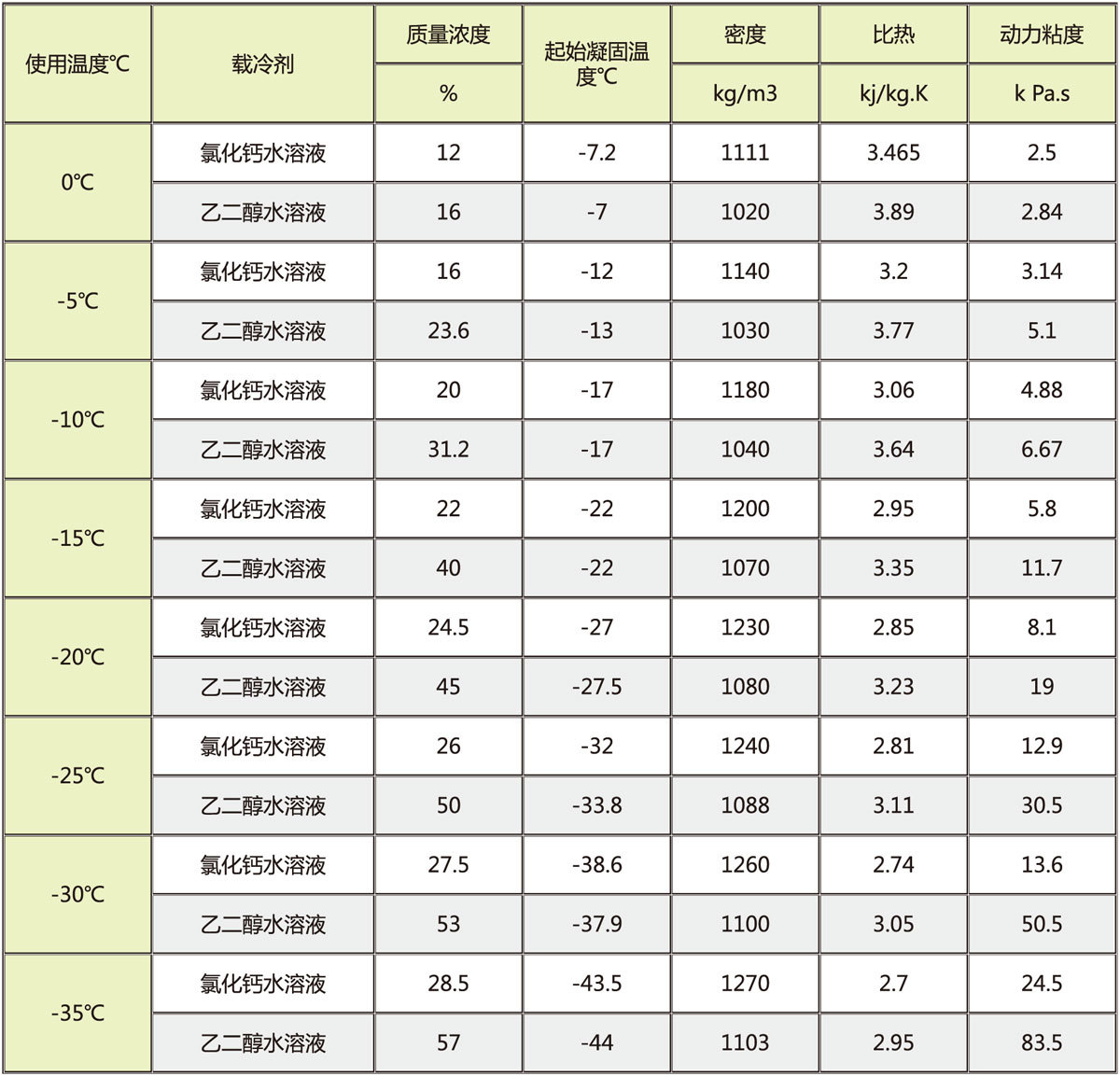

    Conventional refrigerant use temperature and ratio mass concentration table


    乙醇特性
    闪点:13℃(不同含水量的乙醇会有所不同)
    凝固点:-114.l℃
    沸点(一标准大气气压下):78.3℃
    相对密度:790kg/m3
    比热熔:2.1kj/kg.K
    爆炸上限%(V/V):19.0
    爆炸下限%(V/V):3.3

    二氯甲烷特性
    凝固点:-96.7℃
    沸点:39.8℃
    相对密度:1325kg/m3
    比热熔:0.58kj/kg.K
    爆炸上限%(V/V):19.0 爆炸上限%(V/V):19.0
    爆炸下限%(V/V):12 爆炸下限%(V/V):3.3

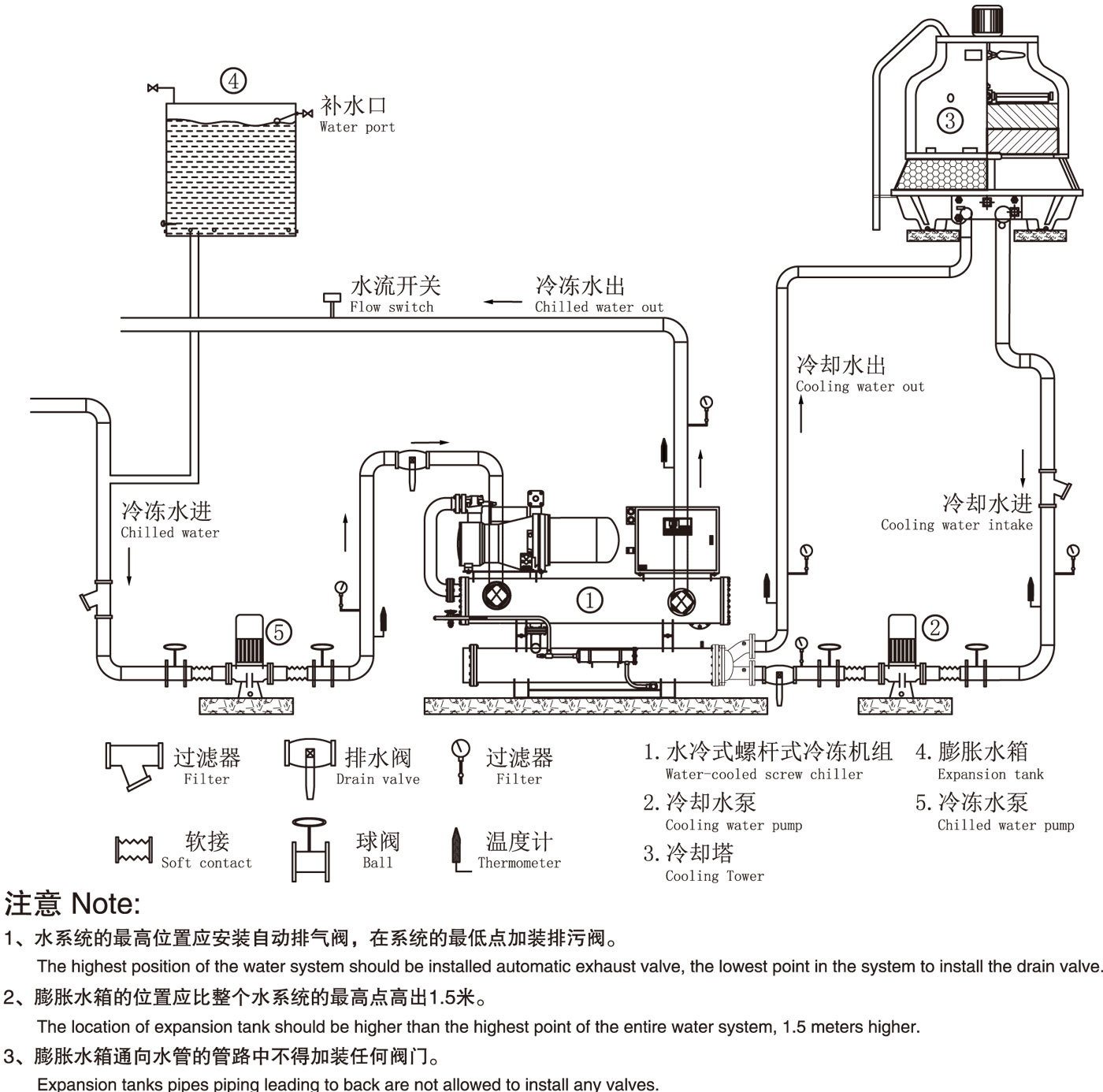

    机组安装示意图

    工业冷却解决方案

图片名称

Packaging and shipping

图片名称

Analyze products

图片名称

formulate a scheme

图片名称

Plan rectification

图片名称

Safety debugging

图片名称

Equipment manufacturing

图片名称

Customer determines the plan

图片名称

Understand customer needs
