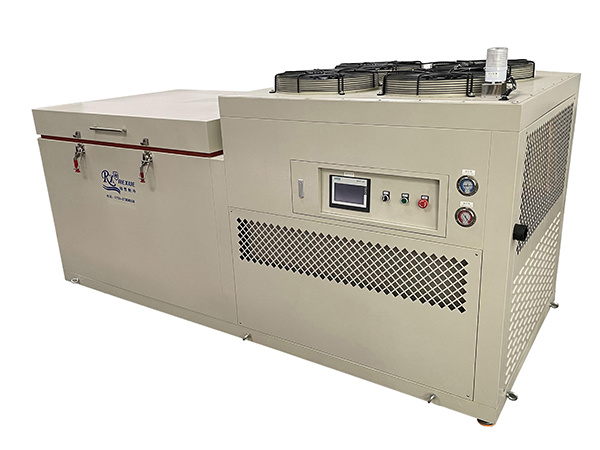

-150 ℃ industrial freezer and metal cryogenic treatment box


-150°C industrial freezer, metal cryogenic treatment box, bearing assembly freezer, industrial cryogenic freezer, cryogenic industrial refrigerator, cryogenic assembly box, metal cryogenic treatment box, ultra-low temperature freezer, ultra-low temperature freezer, industrial cryogenic freezer, low-temperature cryogenic cryogenic box.

Keyword:

LED

Category:

LCD Screen Freezing And Disassembling Refrigerator

Immediately consult

-150 ℃ industrial freezer and metal cryogenic treatment box

  • DESCRIPTION
  • Main features
  • Model
  • Application
  • -150°C industrial freezer, metal cryogenic treatment box, bearing assembly freezer, industrial cryogenic freezer, cryogenic industrial refrigerator, cryogenic assembly box, metal cryogenic treatment box, ultra-low temperature freezer, ultra-low temperature freezer, industrial cryogenic freezer, low-temperature cryogenic cryogenic box.

    First, the structure composition of ultra-low temperature freezer and metal cryogenic treatment box

    Ultra-low temperature freezer, metal cryogenic treatment box, also known as industrial low temperature freezer, is mainly composed of low temperature compressor, condenser, condensation evaporator, oil separator, evaporator, insulation box, Siemens PLC control system and other major components.

    Second, the role of metal cryogenic treatment

    1. The transformation of residual austenite to martensite

    2. Precipitate ultrafine carbide particles with diffusion distribution

    3. Reduce the residual stress of metal materials

    The cryogenic treatment process is a process in which metal materials or parts are placed in a low temperature environment of -65 °C ~ -160 °C for rapid freezing treatment, so that the residual austenite in the metal is converted into martensite. It is a "soft" phase, low hardness, strength, unstable, will change during use, cause part volume changes, affect the fatigue life of steel, surface easy wear, not wear-resistant, size instability! Therefore, generally after quenching, the temperature is reduced below the martensite transition termination point, which can transform the residual austenite of the face-centered cubic structure into the martensite of the body-centered cubic structure, thereby improving the hardness, strength and dimensional stability of the part.

    Third, the working principle of cryogenic treatment is introduced

    Cryogenic treatment of cryogenic box is the use of compressor compression refrigerant as cooling medium, programmed cryogenic treatment (-160 °C) and low-temperature tempering of materials, so as to achieve the purpose of improving and strengthening the properties of metal materials.

    The so-called cryogenic treatment is to use the compressor refrigeration method to continue the cooling process of the quenched metal material to reach a certain temperature far below the room temperature, so that the residual austenite existing after conventional heat treatment is further converted into a tool steel hardening. A large number of residual austenite in the metal transforms martensite, precipitates dispersion, and the fine dispersed carbide hinders the dislocation movement in the raw material, thereby strengthening the matrix structure, and at the same time plays a grain boundary strengthening role by ultrafine carbonization, thereby changing the performance of the tool steel workpiece, making it have the impact toughness and wear resistance of the tool steel workpiece, the dimensional stability of the tool steel workpiece, the service life of the tool steel workpiece, and the interference assembly.

    Experiments have proved that after low temperature treatment of high-speed steel tools, the wear resistance is increased by 3 times. The coefficient of friction is reduced by 20%, the hardness is increased by 1-4 times, and the service life is increased by 1-3 times. Experiments on other materials have also obtained similar results for extending the service life, such as alloy steel, polycrystalline diamond, etc., especially the treatment effect of stamping dies is particularly obvious, and the service life is increased by dozens of times. These two profound changes make low-temperature cold treatment technology have unique advantages.

    At the same time, our company can design, manufacture, all kinds of non-standard industrial low-temperature freezers, low-temperature industrial refrigerators, cryogenic assembly boxes, metal cryogenic treatment boxes, ultra-low temperature freezers, ultra-low temperature freezers, industrial cryogenic freezers, low-temperature cryogenic boxes, cryogenic units, anti-corrosion or explosion-proof low-temperature units;

  • Ultra-low temperature freezer technical features and advantages

    1. Using a single compressor automatic cascade refrigeration technology, the lowest can reach -160 °C

    2. The pipeline is simple, the failure rate of the automatic cascade refrigeration system is low, and it can work continuously and stably for a long time

    3. Strong bearing capacity in the box (10~1200kg), wide range temperature control (+100°C~-160°C adjustable)

    4. Using unique secondary foaming technology, effectively prevent the low-temperature damage of the heat insulation layer, 200mm ultra-thick insulation layer, good insulation effect

    5. The inner box is a strong cold air circulation to ensure temperature uniformity of ≤ 1 °C

    6. Fast and efficient heating defrosting method -150°C~+100°C≤30min

    7. Easy to operate: simply connect the power supply and use

    8. High efficiency: the temperature in the box is ≤150min from normal temperature to target temperature for the first time

    9. Low cost of use: only need to connect the power supply, no other wearing parts, consumables, safe and reliable.

    10. Various sizes and temperature zones can be tailored according to user needs

    11. Fault self-diagnosis, leakage, missing items,

  • Please enter the content...

  • Ultra-low temperature freezer application range

    1. Cryogenic treatment of metal materials such as high-speed steel, bearing steel, and mold accessories

    2. Cold shrinkable assembly of bearings, copper sleeves, and interference assembly of precision mechanical parts

    3. Precision assembly, hardware tools, mold cold and heat treatment

    4. Aerospace, hardware, tools, friction couples, precision processing, measuring tools, textile machinery, automobiles and many other fields

    5. After deep cooling, ensure the dimensional accuracy of the workpiece, improve the wear resistance and impact toughness of the workpiece, and improve the stress distribution in the workpiece
